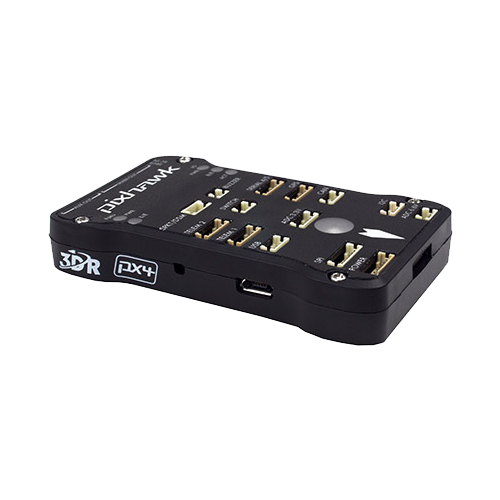

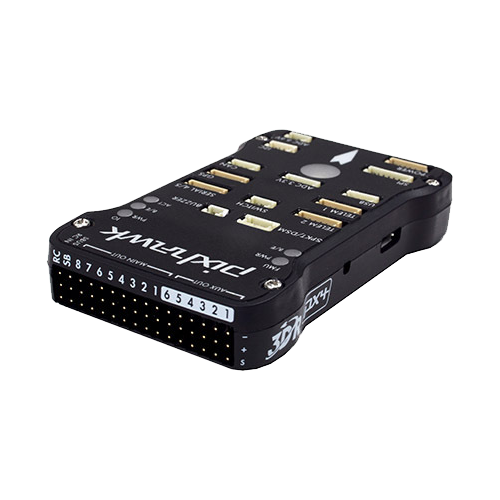

Pixhawk is an advanced autopilot system designed by the PX4 open-hardware project and manufactured by 3D Robotics. It features advanced processor and sensor technology from ST Microelectronics® and a NuttX real-time operating system, delivering incredible performance, flexibility, and reliability for controlling any autonomous vehicle.

Requires GPS (available below) for autonomy.

Specificaties

Afmetingen: FC: 54mm x 39 x 14.9mm IMU: 41.3mm x 30.5mm x 26.3 PMU: 39.5mm x 27.6mm 9.8mm LED-BTU-I: 30mm x 30mm x 7.9mm ?ESC Output: 400Hz Verversingsfrequentie ?Aanbevolen batterij: 2S ~ 6S LiPo ?Werkingstemperatuur: -5°C tot + 60°C ?Software vereiste: Windows XP sp3 / Windows 7 / Windows 8 (32 or 64 bit) ?Nauwkeurigheid: Verticaal: ± 0.5m Horizontaal: ± 1.5m ?Maximum windsnelheid: < 8m/s (28.8km/h) ?Maximale rotatie (yaw): 150 deg/s ?Maximale tilt hoek: 35 graden ?Stijging / daling: ±6m/s ?Energieverbruik: 5W (0.3A@12.5V) ?Ingebouwde functies: Built-in Receiver, Multiple Control Modes, 2-axis Gimbal Supported, Low Voltage Protection, PC & Bluetooth Ground Station, External Receiver, Supported, Intelligent Orientation Control, Sound Alarm, 4 Configurable Output Leveringsomvang: 1 x Main controller 1 x IMU 1 x LED 1 x PMU 10 x 3-PIN servo cable 1 x USB cable 1 x GPS Bracket
